● Certificates: CE, RoHS, ENEC; UL/cUL optional
● 130lm/W, 50,000h lifespan, CRI>80
● Working temp: -20℃ ~ +45℃
● OEM/ODM custom service available
● 12–24h aging test for every batch
● IP65 & IK08 protection
● MOQ：1000
● 3/5 years warranty optional
● 600mm 18W | 1200mm 36W | 1500mm 50W |
● UV stabilized body, Ik08 impact rating
● Robust stainless steel or polycarbonate clips
● 3000K/4000K/6500K CCT changeable by DIP switch
Microwave Sensor/ Emergency / 1-10V dim / DALI

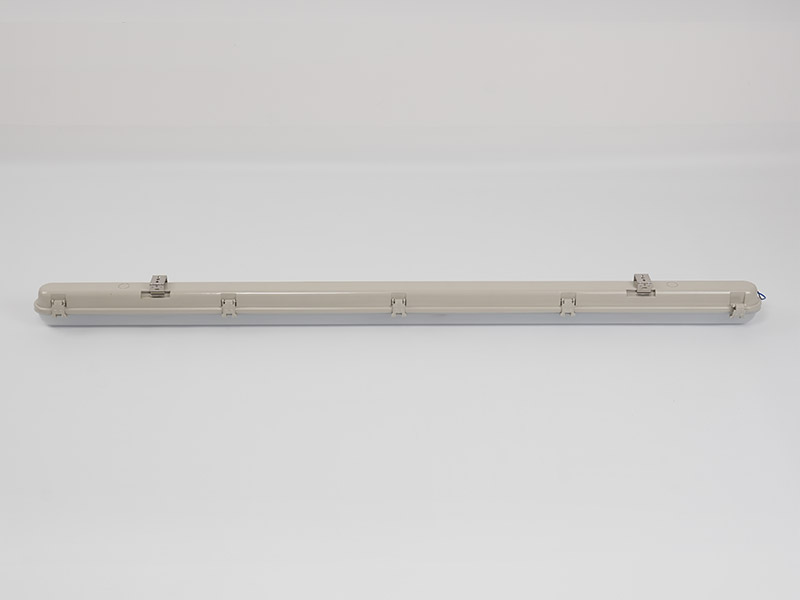

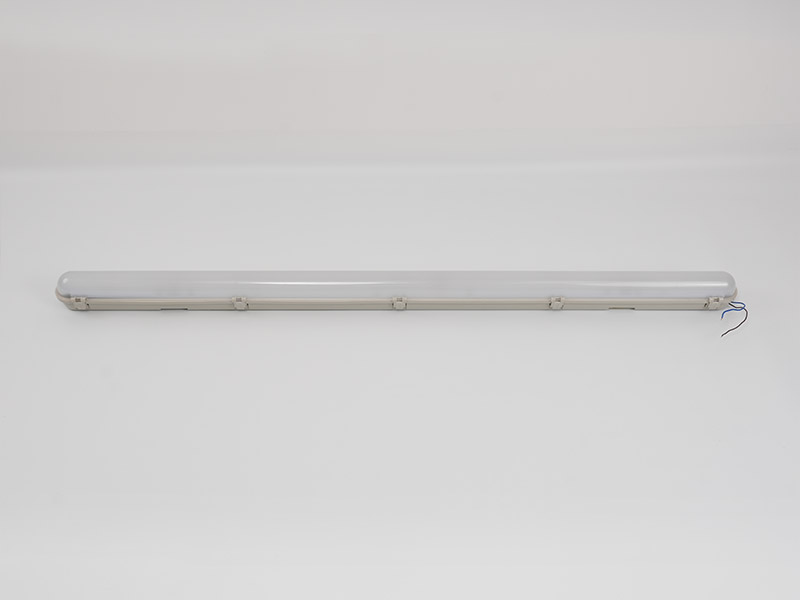

The WP-H stadium LED Tri proof light is built for large, high-ceiling spaces such as stadiums, warehouses, supermarkets, and industrial halls. As a wide beam LED Tri proof light, it delivers broad, uniform illumination with an IK08 impact-rated, UV-stabilized polycarbonate body and robust stainless steel or polycarbonate clips for demanding environments. Available as a LED Tri proof light 40W, 50W, 60W option, it provides high lumen output with 3000K / 4000K / 6500K CCT selection via DIP switch, plus optional microwave sensor, emergency backup, 1-10V dimming, or DALI control. The 4ft LED Tri proof light version offers easy loop-in/loop-out wiring, IP65 sealing against water, dust, and moisture, and over 50,000 hours of reliable operation—making it an ideal waterproof, durable, and energy-efficient lighting solution for stadium-grade and commercial applications.
Engineered for high efficiency, the Tri-Proof Lights 40W deliver an impressive luminous efficacy of up to 150 lm/W, reducing energy consumption by up to 60% compared to traditional fluorescent fixtures while cutting utility costs.
Engineered for flexible lighting control, the 4FT Tri-Proof Lights 40W feature DIP-switch color temperature selection (3000K / 4000K / 6500K) and optional radar motion sensors or emergency battery backup, enabling maximum energy management across commercial applications.

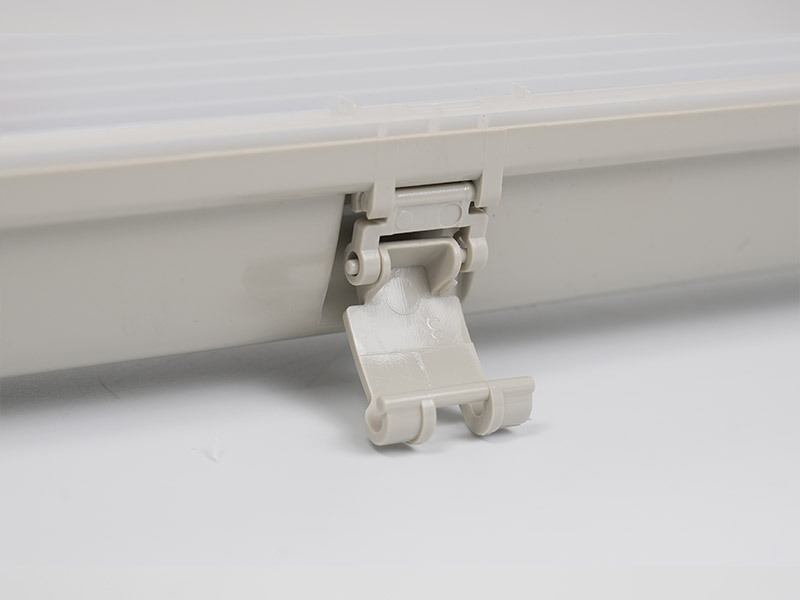

Designed with lock-in-place clips, detachable loop-in/loop-out terminal blocks, and multiple rear entry points to drastically reduce labor time and installation costs.
The 4FT Tri-Proof Lights 40W support continuous linear trunking connection for long aisles, vast supermarket ceilings, and large open spaces, ensuring uniform light distribution across the entire area.
With a robust polycarbonate housing and stainless steel clips, the 4FT Tri-Proof Lights 40W deliver over 50,000 hours of rated operation, significantly reducing replacement frequency and maintenance costs in demanding supermarket environments.
Operating an ISO-certified modern manufacturing facility spanning over 15,000 m² with automated SMT production lines and modern assembly workshops.
Fully certified under global standards including CE, RoHS, ERP, and SAA, guaranteeing compliance across international markets.
Rigorous Testing: Every product undergoes a 100% 72-hour continuous high-voltage aging test and strict IP66 waterproof pressure spray testing prior to packaging.
Warranty Commitment: Backed by an official 3 to 5-year hassle-free warranty for total peace of mind.
High Capacity: Boasts an annual production capacity exceeding 1.2 million units of commercial and industrial fixtures.
Fast Lead Times: Flexible OEM/ODM support with custom sample production within 5–7 days and bulk container order fulfillment within 30–35 days.
24/7 global customer support team providing technical assistance, installation guidance, and rapid replacement component shipping within warranty periods.

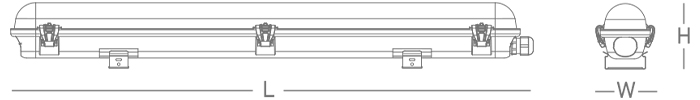

| Item | Voltage | Power | Lumen | IP | IK | PF | Ra | Size |
| PK-WP-H-106 | 220-240V | 9W | 900 lm | 65 | 08 | 0.9 | >80 | 660*70*78mm |
| PK-WP-H-112 | 220-240V | 18W | 1800lm | 65 | 08 | 0.9 | >80 | 1260*70*78mm |
| PK-WP-H-115 | 220-240V | 24W | 2400lm | 65 | 08 | 0.9 | >80 | 1560*70*78mm |
| PK-WP-H-206 | 220-240V | 18W | 1800 lm | 65 | 08 | 0.9 | >80 | 660*100*78mm |
| PK-WP-H-212 | 220-240V | 36W | 3600lm | 65 | 08 | 0.9 | >80 | 1260*100*78mm |
| PK-WP-H-215 | 220-240V | 50W | 5000lm | 65 | 08 | 0.9 | >80 | 1560*100*78mm |
