● Double security structure with screw
● Conduit entry points at both ends
● Suitable for BESA mounting
● Multiple variations available
● High lumen efficiency, up to 150lm/W
● Available in 10W, 12W, 20W and 24W power options
● Offered in multiple lengths including 2FT, 3FT, 4FT, 5FT and 6FT
LED Batten Light is a durable, metal-housed linear fixture engineered for commercial and industrial illumination, delivering up to 150 lm/W with a slim, space-saving profile that fits corridors, supermarkets, warehouses, garages, workshops and shelving areas. The range supports practical wattage choices such as 10W, 20W and 24W, multiple lengths including LED batten light 2FT, 3FT, 4FT, 5FT and 6FT, and options such as 3-CCT switchable output, sensor, emergency kit, PIR and DALI dimming—making the BL-A led batten a reliable, low-maintenance OEM/ODM lighting solution backed by ISO-certified manufacturing, rigorous aging and waterproof testing.
10W, 20W and 24W LED Batten Lights are constructed with a high-quality metal base (typically aluminum or steel) that provides excellent structural strength and long-term durability.
The metal bottom acts as an efficient heat sink, quickly transferring heat away from the LED chips and driver.
Low-profile, linear form factor fits seamlessly into narrow spaces such as corridors, warehouses, garages, and storage rooms.
Utilizes high-performance LED modules to deliver bright, uniform illumination while consuming significantly less power than traditional fluorescent battens.
Compatible with surface mounting or suspension mounting options.

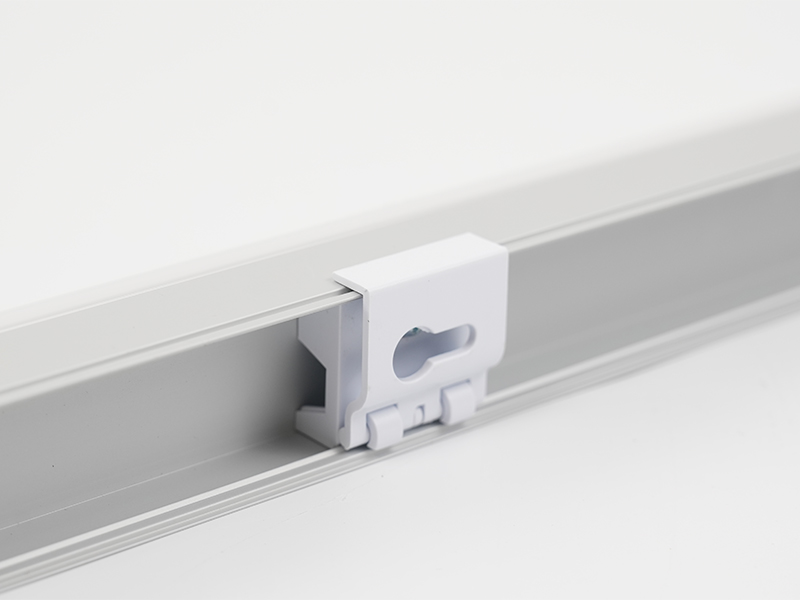

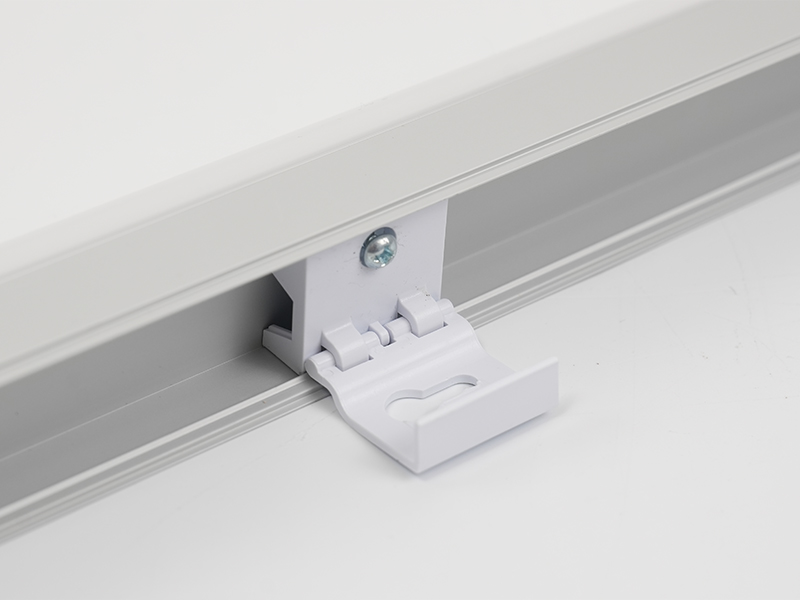

Tool-free or simple clip-on design allows quick installation and easy maintenance.
Operating an ISO-certified modern manufacturing facility spanning over 15,000 m² with automated SMT production lines and modern assembly workshops.
Fully certified under global standards including CE, RoHS, ERP, and SAA, guaranteeing compliance across international markets.
Rigorous Testing: Every product undergoes a 100% 72 -hour continuous high-voltage aging test and strict IP65 waterproof pressure spray testing prior to packaging.
Warranty Commitment: Backed by an official 3 to 5-year hassle-free warranty for total peace of mind.
High Capacity: Boasts an annual production capacity exceeding 1.2 million units of commercial and industrial fixtures.
Fast Lead Times: Flexible OEM/ODM support with custom sample production within 7 days and bulk container order fulfillment within 35 days.
24/7 global customer support team providing technical assistance, installation guidance, and rapid replacement component shipping within warranty periods.

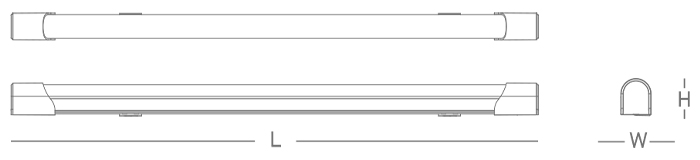

| Item | Voltage | Power | Lumen | IP | IK | PF | Ra | Size |
| PK-BL-A-206 | 220-240V | 10W | 800lm | 20 | 06 | 0.5 | >80 | 610*42*30mm |
| PK-BL-A-212 | 220-240V | 20W | 1600lm | 20 | 06 | 0.5 | >80 | 1210*42*30mm |
| PK-BL-A-215 | 220-240V | 24W | 2000lm | 20 | 06 | 0.5 | >80 | 1510*42*30mm |
| PK-BL-A-506 | 220-240V | 10W | 800lm | 20 | 06 | 0.5 | >80 | 600*30*35mm |
| PK-BL-A-512 | 220-240V | 20W | 1600lm | 20 | 06 | 0.5 | >80 | 1200*30*35mm |
| PK-BL-A-515 | 220-240V | 24W | 2000lm | 20 | 06 | 0.5 | >80 | 1500*30*35mm |
