● Certificates: CE, RoHS, ENEC; UL/cUL optional
● 130lm/W, 50,000h lifespan, CRI>80
● Working temp: -20℃ ~ +45℃
● OEM/ODM custom service available
● 12–24h aging test for every batch
● IP65 & IK08 protection
● MOQ:1000
● 3/5 years warranty optional
● 600mm 18W | 1200mm 36W | 1500mm 50W | 1800mm 70W

● lock-in-place clip design
● Detachable, loop-in/loop-out 4pin terminal block with emergency provision
● Three rear conduit entry points with BESA guides

Microwave Sensor/ Emergency / 1-10V dim / DALI / 3CCT / WIFI / Bluetooth / Power select / Up to 170lm/w / Linkable

Engineered for high performance, the LED Tri-proof lamp delivers an impressive luminous efficacy of up to 150 lm/W, reducing energy consumption by up to 60% compared to traditional fluorescent fixtures while cutting utility costs.
Fully sealed against water, moisture, dust, and mechanical impacts, the IP65 tri-proof LED light fixture ensures reliable, long-term performance in high-traffic or damp commercial environments.
Features DIP-switch color temperature selection (3000K / 4000K / 6500K) and optional radar motion sensors/emergency battery backup for maximum energy management.

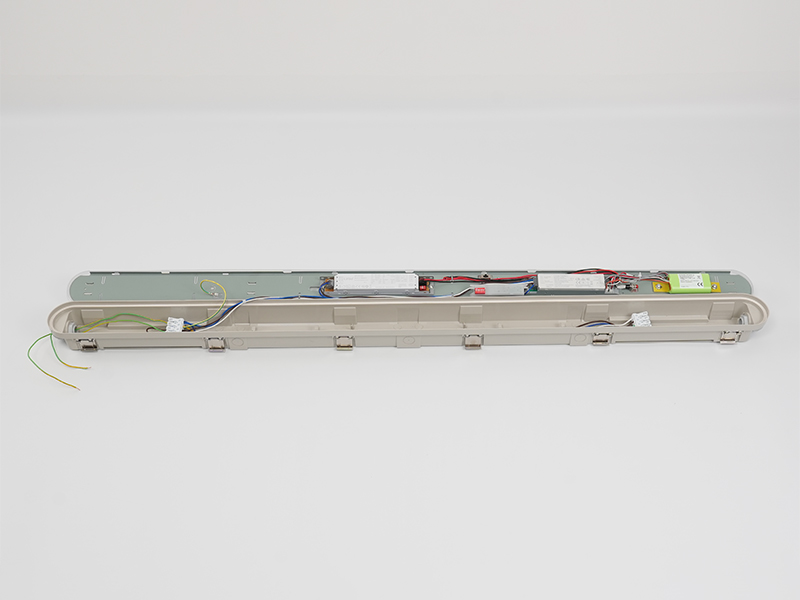

Designed with lock-in-place clips, detachable loop-in/loop-out terminal blocks, and multiple rear entry points, the LED Tri-proof lamp drastically reduces labor time and installation costs.
The IP65 tri-proof LED light fixture supports continuous linear trunking connection for long aisles, vast supermarket ceilings, and large open spaces, ensuring uniform light distribution across the entire area.
Rated for over 50,000 hours of operation with a robust polycarbonate housing and stainless steel clips, the IP65 tri-proof LED light fixture minimizes replacement frequency and maintenance costs in demanding supermarket environments.

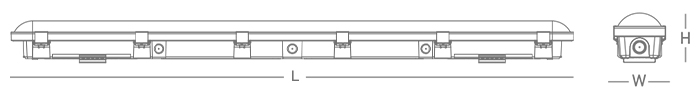

| Item | Voltage | Power | Lumen | IP | IK | PF | Ra | Size |
| PK-WP-E-106 | 220-240V | 18W | 2340 lm | 66 | 08 | 0.95 | >80 | 580*80*81mm |
| PK-WP-E-112 | 220-240V | 36W | 4680lm | 66 | 08 | 0.95 | >80 | 1180*80*81mm |
| PK-WP-E-115 | 220-240V | 50W | 6500lm | 66 | 08 | 0.95 | >80 | 1480*80*81mm |
| PK-WP-E-118 | 220-240V | 70W | 9100lm | 66 | 08 | 0.95 | >80 | 1780*80*81mm |

Operating an ISO-certified modern manufacturing facility spanning over 15,000 m² with automated SMT production lines and modern assembly workshops.
Fully certified under global standards including CE, RoHS, ERP, and SAA, the IP65 tri-proof LED light fixture guarantees compliance across international markets.

Rigorous Testing: Every LED Tri proof lamp product undergoes a 100% 48-hour continuous high-voltage aging test and strict IP65 waterproof pressure spray testing prior to packaging.
Warranty Commitment: Backed by an official 3 to 5-year hassle-free warranty for total peace of mind.

High Capacity: Boasts an annual production capacity exceeding 1.2 million units of commercial and industrial fixtures.
Fast Lead Times: Flexible OEM/ODM support with custom sample production within 5-7 days and bulk container order fulfillment within 30-35days.

24/7 global customer support team providing technical assistance, installation guidance, and rapid replacement component shipping within warranty periods.
