● Quick release design
● Double security structure without screw
● Conduit entry points at both ends
● Suitable for BESA mounting
● Multiple variations available
● High lumen efficiency, up to 150lm/W
● Quick release design
● Double security structure without screw
● Conduit entry points at both ends
● Suitable for BESA mounting
● Multiple variations available
● High lumen efficiency, up to 150lm/W
Microwave Sensor/ Emergency / PIR / DALI

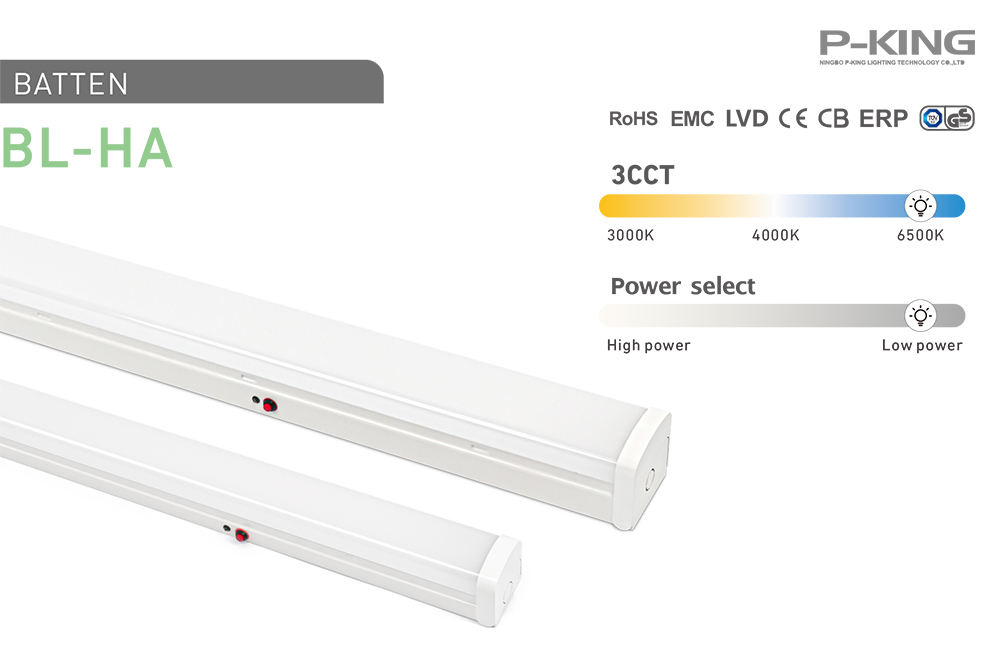

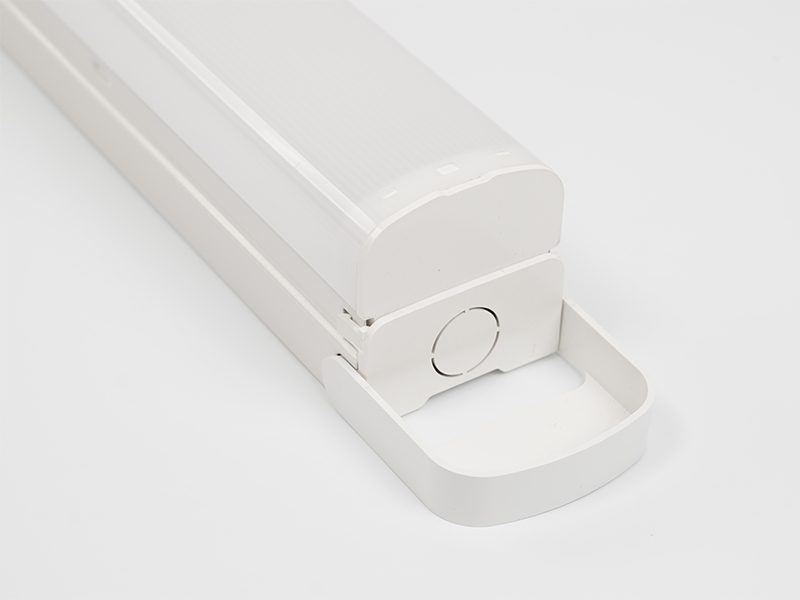

Engineered for high-efficiency commercial and industrial illumination, our led batten lights offers an optimal balance of superior lighting performance and cost-effectiveness. Specifically designed for demanding commercial environments such as supermarkets, retail hubs, and logistics spaces. Delivering up to 150 lm/W high luminous efficacy, it produces smooth, glare-free illumination while significantly reducing electricity expenses and maintenance overhead. Equipped with a quick-install junction box, lock-in-place clips, and 3-CCT switchable options, supermarket led batten lights provides versatile, scalable lighting solution tailored to your operational budget without compromising on quality or longevity.

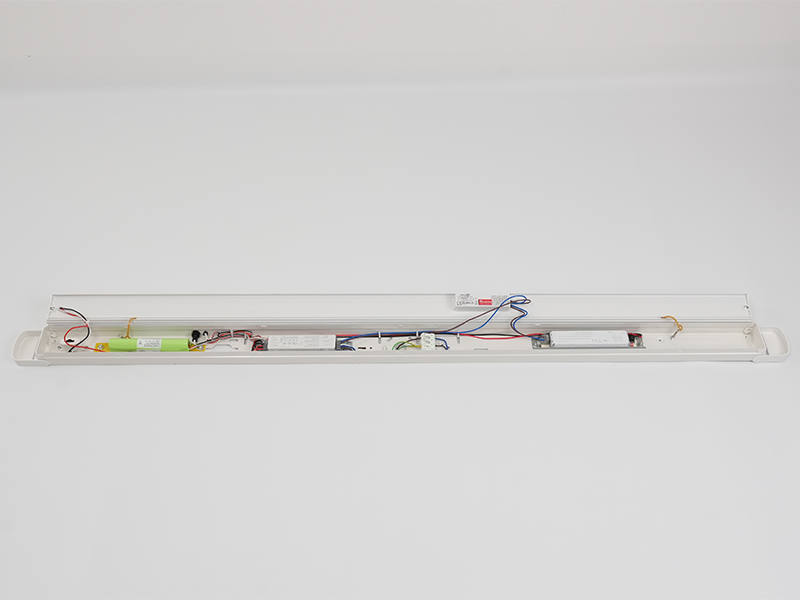

Constructed with a high-quality metal base (typically aluminum or steel) that provides excellent structural strength and long-term durability.
The metal bottom acts as an efficient heat sink, quickly transferring heat away from the LED chips and driver.
Low-profile, linear form factor fits seamlessly into narrow spaces such as corridors, warehouses, garages, and storage rooms.
Utilizes high-performance LED modules to deliver bright, uniform illumination while consuming significantly less power than traditional fluorescent battens.
Compatible with surface mounting or suspension mounting options.
Tool-free or simple clip-on design allows quick installation and easy maintenance.
Operating an ISO-certified modern manufacturing facility spanning over 15,000 m² with automated SMT production lines and modern assembly workshops.
Fully certified under global standards including CE, RoHS, ERP, and SAA, guaranteeing compliance across international markets.
Rigorous Testing: Every product undergoes a 100% 72 -hour continuous high-voltage aging test and strict IP65 waterproof pressure spray testing prior to packaging.
Warranty Commitment: Backed by an official 3 to 5-year hassle-free warranty for total peace of mind.
High Capacity: Boasts an annual production capacity exceeding 1.2 million units of commercial and industrial fixtures.
Fast Lead Times: Flexible OEM/ODM support with custom sample production within 7 days and bulk container order fulfillment within 35 days.
24/7 global customer support team providing technical assistance, installation guidance, and rapid replacement component shipping within warranty periods.
| Item | Voltage | Power | Lumen | IP | IK | PF | Ra | Size |
| PK-BL-HA-106 | 220-240V | 20W | 2000 lm | 20 | 08 | 0.9 | >80 | 610*65*75mm |
| PK-BL-HA-112 | 220-240V | 40W | 4000lm | 20 | 08 | 0.9 | >80 | 1200*65*75mm |
| PK-BL-HA-115 | 220-240V | 50W | 5000lm | 20 | 08 | 0.9 | >80 | 1500*65*75mm |
| PK-BL-HA-118 | 220-240V | 75W | 7500 lm | 20 | 08 | 0.9 | >80 | 1800*65*75mm |
| PK-BL-HA-206 | 220-240V | 20W | 2000lm | 20 | 08 | 0.9 | >80 | 620*84.5*79.5mm |
| PK-BL-HA-212 | 220-240V | 40W | 4000lm | 20 | 08 | 0.9 | >80 | 1200*84.5*79.5mm |
| PK-BL-HA-215 | 220-240V | 50W | 5000lm | 20 | 08 | 0.9 | >80 | 1500*84.5*79.5mm |
| PK-BL-HA-218 | 220-240V | 75W | 7500lm | 20 | 08 | 0.9 | >80 | 1800*84.5*79.5mm |
