● Double security structure with screw
● Conduit entry points at both ends
● Suitable for BESA mounting
● Multiple variations available
● High lumen efficiency, up to 150lm/W
● Double security structure with screw
● Conduit entry points at both ends
● Suitable for BESA mounting
● Multiple variations available
● High lumen efficiency, up to 150lm/W
Sensor / Emergency kit / PIR / DALI

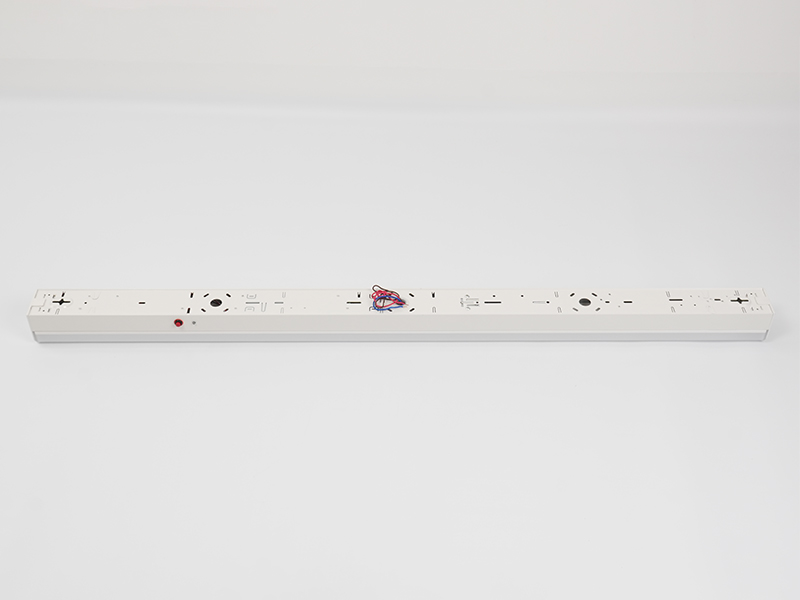

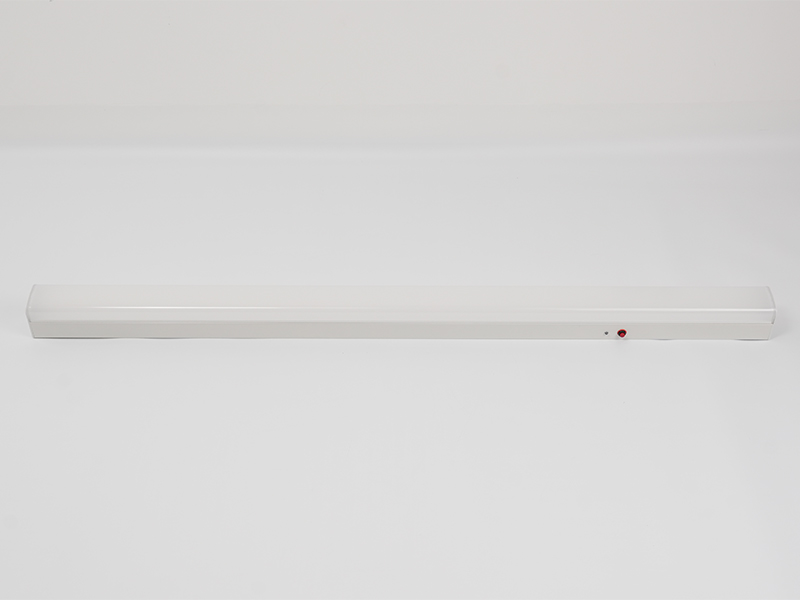

The single 4ft led batten light is a high-efficiency 1200mm linear fixture built for demanding commercial and industrial spaces, delivering up to 150 lm/W with a durable metal base, conduit entry points at both ends, BESA-compatible mounting, and tool-friendly installation. Engineered as a reliable 4ft led batten weatherproof solution for warehouses, supermarkets, workshops, corridors and mining-support areas, it offers IP20/IP65-ready construction, optional PIR / microwave sensor, plus 3-CCT switchable output for flexible, low-glare, maintenance-friendly illumination backed by ISO-certified manufacturing.

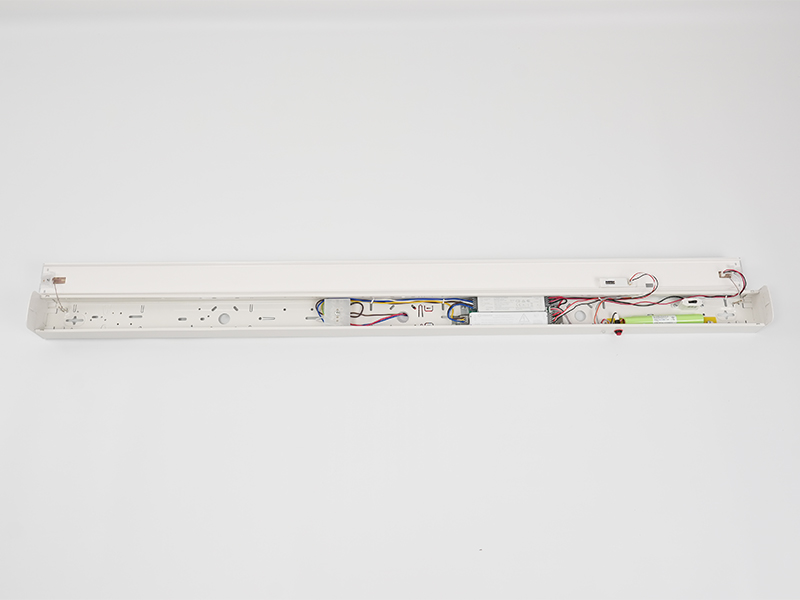

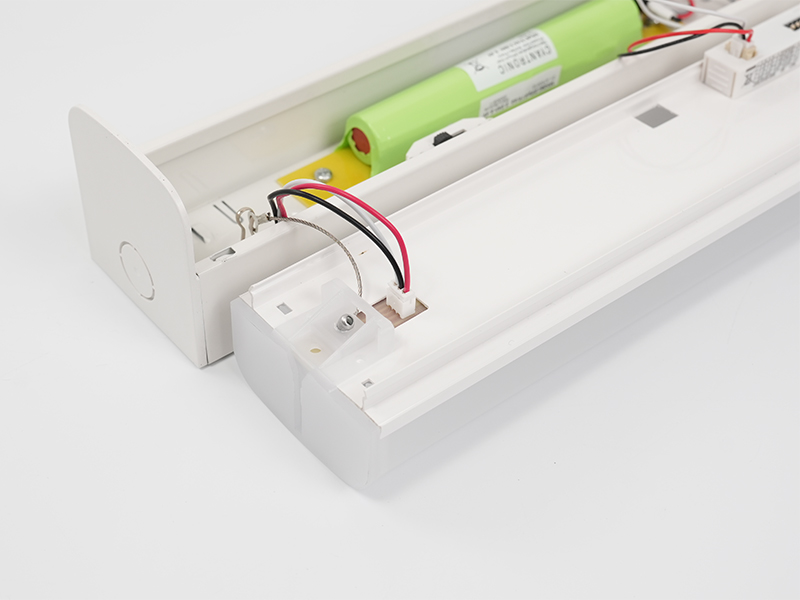

Single 4ft led batten lights are constructed with a high-quality metal base (typically aluminum or steel) that provides excellent structural strength and long-term durability.
The metal bottom acts as an efficient heat sink, quickly transferring heat away from the LED chips and driver.
Low-profile, linear form factor fits seamlessly into narrow spaces such as corridors, warehouses, garages, and storage rooms.
Utilizes high-performance LED modules to deliver bright, uniform illumination while consuming significantly less power than traditional fluorescent battens.
Compatible with surface mounting or suspension mounting options.
Tool-free or simple clip-on design allows quick installation and easy maintenance.
Operating an ISO-certified modern manufacturing facility spanning over 15,000 m² with automated SMT production lines and modern assembly workshops.
Fully certified under global standards including CE, RoHS, ERP, and SAA, guaranteeing compliance across international markets.
Rigorous Testing: Every 4ft led batten weatherproof product undergoes a 100% 72 -hour continuous high-voltage aging test and strict IP65 waterproof pressure spray testing prior to packaging.
Warranty Commitment: Backed by an official 3 to 5-year hassle-free warranty for total peace of mind.
High Capacity: Boasts an annual production capacity exceeding 1.2 million units of commercial and industrial fixtures.
Fast Lead Times: Flexible OEM/ODM support with custom sample production within 7 days and bulk container order fulfillment within 35 days.
24/7 global customer support team providing technical assistance, installation guidance, and rapid replacement component shipping within warranty periods.
| Item | Voltage | Power | Lumen | IP | IK | PF | Ra | Size |
| PK-BL-VA-106 | 220-240V | 20W | 2400lm | 20 | 06 | 0.9 | >80 | 600*65*67mm |
| PK-BL-VA-112 | 220-240V | 40W | 4800lm | 20 | 06 | 0.9 | >80 | 1200*65*67mm |
| PK-BL-VA-115 | 220-240V | 60W | 7200lm | 20 | 06 | 0.9 | >80 | 1500*65*67mm |
| PK-BL-VA-118 | 220-240V | 80W | 9600lm | 20 | 06 | 0.9 | >80 | 1800*65*67mm |
