LED Tri-Proof Lights IP65 IK08 for Harsh Environments
The Sealed Linear Workhorse That Survives Where Ordinary Luminaires Fail

When a lighting fixture is mounted in a freezer at −25 °C, a car wash hit by high-pressure spray, a tunnel vibrating from passing trains, or a poultry barn saturated with ammonia vapor, the word "waterproof" on a catalog page means nothing. What matters is whether the luminaire is engineered as a sealed system—gasket, diffuser, driver, PCB coating, and end cap working together—to keep performing for 50,000 hours without flicker, condensation, or rust. That is exactly the problem the LED tri-proof light rated IP65 + IK08 solves, and why it has become the default specification for importers, EPCs, and facility managers procuring for hostile sites.

Ningbo P-king Lighting Technology Co., Ltd. builds its tri-proof platform around that reality: not a decorative batten with a rubber ring, but a PC-and-aluminum vapor-tight linear fixture validated for dust, water jets, corrosion, and 5-joule impact.

What IP65 + IK08 Actually Buys You

IP and IK are not marketing adjectives; they are defined test regimes.

IP65 = Dust-tight and spray-proof: Dust-tight (no ingress of particles ≥75 μm) + protected against water jets from any direction at 12.5 L/min, 30 kPa, 3 minutes per side. In plain terms: rain under a loading dock, hose spray in a dairy plant, condensation cycles in cold storage, and road grime in a tunnel will not reach the LED board.
IK08 = Impact resistance of 5 Joules: Resists 5 joules of mechanical impact, equivalent to a 1.7 kg mass dropped from 30 cm. That covers a stray pallet jack bump, a tool slip during maintenance, hail on a semi-outdoor canopy, and routine vibration fatigue. IK10 (20 J) exists for heavier abuse, but IK08 already covers the vast majority of industrial and commercial abuse cases without over-specifying cost.

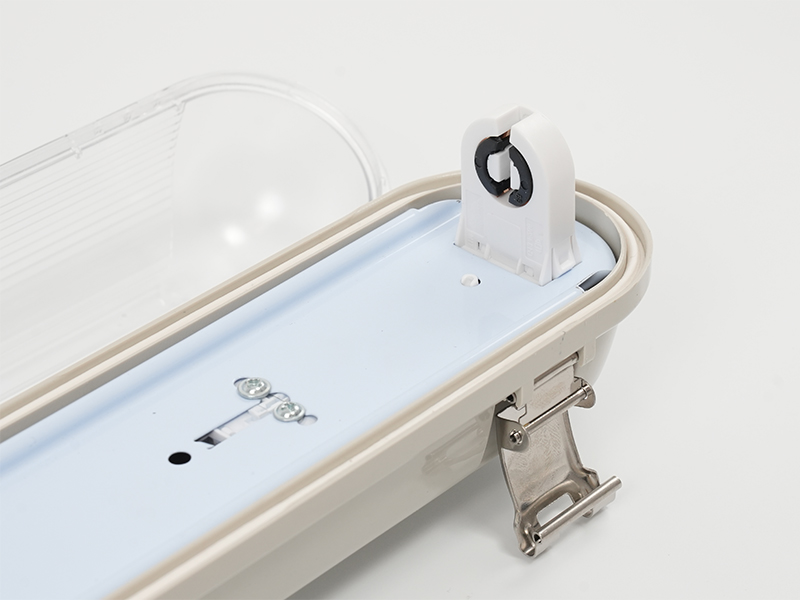

P-king's tri-proof bodies pair UV-stabilized polycarbonate diffuser + anti-corrosion PC housing with inner aluminum heat channel, silicone-sealed end caps, stainless clips, and tool-less terminals. The result is a fixture that passes not only the fresh-out-of-the-box IP/IK test, but also survives 1,000+ thermal cycles where cheap ABS gaskets would shrink and breathe moisture inward.

Core Specifications That Match Harsh Sites

For global importers, the 40W / 50W / 60W range is the commercial backbone—1200 mm and 1500 mm lengths, 100–277 V or 220–240 V input, 120–140 lm/W system efficacy, CRI ≥ 80, CCT 3000–6500K, PF > 0.9, L70 ≥ 50,000 h, −30 °C to 60 °C operation.

ComponentSpecification
HousingReinforced PC outer + aluminum inner profile, flame-retardant V2, anti-corrosion WF2 grade
Optics120° non-yellowing PC lens, >85% transmittance, flicker-free
SealingContinuous silicone gasket, EP/DM end-cap rings, PG cable gland or quick connector
DriverLifud / Philips / Osram / P-king isolated, 0–10V / DALI / microwave sensor / 3CCT dip-switch / emergency 1–3 h
MountingSurface, suspension wire, rod, wall bracket; linkable daisy-chain for long aisles

This is the spec sheet that lets one SKU serve a Polish warehouse, a Queensland open-air carpark, and a Saudi Arabian food plant—by swapping driver and label, not tooling.


Where IP65 IK08 Tri-Proof Lights Earn Their Keep

Cold Storage and Food Processing: At −20 °C to −30 °C, ordinary fixtures fog, crack, or fail to start. A sealed IP65 body with low-temp-rated driver and anti-condensation gasket blocks frost ingress; smooth PC surface survives daily sanitizer washdown and meets hygiene audit requirements.
Parking (underground + open-air): Underground levels combine damp concrete, vehicle exhaust corrosion, and occasional pressure-wash. Open-air decks add rain, snow, and UV. IP65 IK08 handles both; IK08 specifically absorbs the door-handle and trolley impacts that dent standard battens.
Industrial Plants and Workshops: Woodworking dust, metal shavings, welding fume, and chemical mist destroy vented fixtures in months. The dust-tight seal keeps the LED board clean; the PC housing shrugs off alkali/acid splash that eats powder-coated steel.
Tunnels and Traffic: Vibration-induced loosening is the silent killer of tunnel lighting. P-king's tri-proof line is aged under vibration and temperature shock at the factory, and the sealed body prevents condensation drip onto roadways.
Agriculture and Animal Husbandry: Ammonia from poultry houses and fertilizer vapor in greenhouses corrode metal housings fast. Anti-ammonia PC + WF2 anti-corrosion rating extends service life from <2 years (standard batten) to 5+ years.
Car Wash and Pool Deck: High-pressure spray and chlorine humidity are textbook IP65 scenarios; IK08 covers the occasional brush-frame collision.

Why P-king's Platform Is Built for Importers

Factory Capabilities: P-king Lighting (Ningbo, est. 2011) runs a 15,000 m² plant, 4 automated lines, 5 million pcs/yr capacity, with in-house injection, SMT, assembly, and aging/vibration/temperature/shock testing. For the IP65 IK08 tri-proof category, that vertical control translates into:
  • Consistent IP/IK pass rate – gasket compression force, clip torque, and end-cap glue are controlled per batch, not per shipment

  • OEM/ODM depth – laser logo, private mold, carton artwork, driver brand swap, 3CCT/power-adjust/sensor/emergency variants, Dialux IES files

  • Certifications that clear borders – CE, RoHS, SAA, CB, GS, REACH, UL/ETL on selected stacks, ISO9001:2015 + BSCI system

  • Lead time – 30-day custom-OEM delivery, mixed-wattage container loading, repeat-SKU buffer stock

  • Warranty backstop – 3–5 years, 48-hour defective replacement, 24/7 technical response

A distributor in the Nordics can specify 40W IP65 IK08 4000K with 3CCT dip-switch and SAA+CE paperwork; a contractor in the Gulf can order 60W 5000K with microwave sensor and Arabic label; same tooling, same production line.

Total Cost of Ownership Beats the Cheap Batten

TCO Comparison: Against a T8 fluorescent waterproof fitting, a 50W LED tri-proof at 130 lm/W delivers comparable lux at ~45% of the watts, eliminates ballast replacements, and removes the mercury-disposal line item. Against an unrated "IP65-looking" Alibaba batten with rubber-end caps, the P-king unit wins on field failure rate: the real cost of tri-proof lighting is not the ex-works price, but the cherry-picker hour at year two when a gasket breathes in moisture and half a corridor goes dark.

A 10,000 m² fulfillment center retrofitting 200 W metal halide with 44 W IP65 IK08 tri-proof typically cuts lighting energy ~75% and maintenance visits ~85% over five years. At scale, that pays back the fixture premium in under 18 months.

Specifying Right: IP65 IK08 Is Usually Enough

Buyers sometimes over-specify IP66/IP67 or IK10 because "higher number = safer." In reality:

  • IP65 already covers rain, hose spray, condensation, dust – i.e. 90% of warehouse / carpark / factory jobs.

  • IP66 only earns its cost in high-pressure washdown (abattoirs, bottling lines).

  • IK08 absorbs the impact classes seen in parking and light industrial; IK10 is for crane bays and mining frontlines.

Choosing IP65 IK08 deliberately—rather than inflating the number—protects margin and still meets tender requirements across EU, AU, NA, and MEA markets.

Closing

The LED tri-proof light IP65 IK08 is not a glamorous product. It is the unsexy, sealed, impact-rated linear fixture that keeps a cold chain running, a carpark safe, and a food line auditable. For importers, the differentiator is not the rating printed on the box—it is whether the factory behind it controls gaskets, aging, and certifications well enough that the rating holds on site in year four.

P-king Lighting's tri-proof series is engineered for that standard. Explore the 40W/50W/60W IP65 IK08 platform, download IES files, and request an OEM sample here:
https://www.pking-lighting.cn/LED-Tri-Proof-Lights.html

Ningbo P-king Lighting Technology Co., Ltd.
Add: No.1018, CiDong Road, LongShan Coastal Economic Development Zone, CiXi, NingBo, ZheJiang, China
Tel: +86-574-55869819 | Email: sales2@p-king.cn
15,000 m² plant · 5M pcs/yr · CE/RoHS/SAA/CB · OEM & ODM since 2011
